特點：

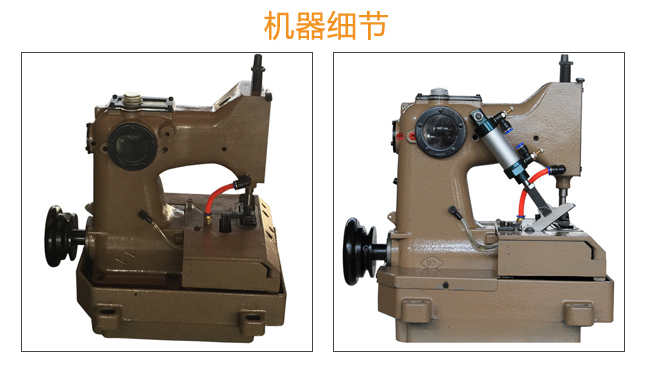

GK20-DN-2S系列封口縫紉機式本公司在DN-2、DS-9、GK8等封口縫紉機基礎上自行研發的一款全新封口縫紉機。該機采用封閉式自動潤滑，具有較大的針桿行程，強勁的上、下同步送料機構，縫厚性能強，針距大，線跡均勻美觀。
該機關鍵零部件采用優質碳素合金鋼材料，經熱處理精加工而成，零件表面具有較高硬度及光澤和尺寸精度，提高了機器運轉平穩性，關鍵軸套，連修方便，式紙袋制造廠、水泥廠、水泥廠胡化工廠等縫制各種編織袋廠的專用設備。
Characteristics：
GK20 - DN - 2 s series sealing machine type in DN - 2, DS - 9, GK8 sealing machine is developed on the basis of a new sealing machine. The machine adopts closed automatic lubrication, has a larger needle bar stroke, strong upper and lower synchronous conveying mechanism, thick seam performance is strong, stitch, stitch uniform appearance.
The key parts adopt high quality carbon steel materials, after finish machining, heat treatment parts surface with high hardness and gloss and dimensional accuracy, improve the smoothness of the machine is running, the shaft sleeve, even convenient, type paper bag factory hu chemical plants, cement, cement and other sewing special equipment of various kinds of woven bag factory.
主要技術參數Main Parameters:
縫紉速度 Max sewing speed |
2200/min |
縫紉厚度 Max sewing thickness |
12mm |
針距 Max stitch |
15mm |
線跡形式 Stitch type |
單線鏈式線跡 Single chain track
雙線鏈式線跡 Double chain track
雙針四線鏈式線跡。左右針間距4mm,前后針間距8mm
Double four chain track.About the needle spacing 4mm Before and needle spacing 8mm
|
采用機針 Needle Size |
DR×2. 230-300 GK230-300 |
縫線規格 Suture stabdard |
滌綸線21支4-9股 Polyester thread 21 4-9 stocks |
電機功率 Eletric motor power |
0.37Kw |
機頭外形包裝尺寸 Packaging of machine |
55×37×50cm |
機頭重量 Winght of machine |
35kg |
潤滑方式 Lubrication way |
刮油板供油飛濺潤滑 Oil scraper plate oil splash lubrication |
